Assignment 1: Familiarisation with Assembly Language and HDL/FPGA

Work in progress!

This document is a draft. It may change until 31 August 2025, after which no further significant changes will be made. Corrections and clarifications may still be made after this date.

Info

Assignment 1 consists of 2 tasks, worth 5 points each, for a total of 10 points.

Assignment 1 is an individual exercise. You will work in groups for later labs, but this one must be completed, submitted and demonstrated individually.

Introduction

This assignment is designed to test your prerequisite knowledge for smooth completion of this course. It will walk through some basics of desigining for FPGA hardware, writing RISC-V code, and how to use your RISC-V code in an FPGA design.

It is imperative to put in effort and try your best for this assignment. It may take an amount of effort that is quite disproportionately large, compared to the impact on your grade. This is normal. This assignment is designed to prepare you for the later ones, so that you can spend time debugging your design, instead of debugging your knowledge.

Task 0: Getting familiar with FPGAs [0 points]

To comfortably complete Assignment 1 (and 2 and 3 and 4, for that matter), solid familiarity with the FPGA design toolchain is required. Having taken, and understood (at least most of) EE2026 or CS2100DE is sufficient for this level of familiarity.

If you are not confident of your Vivado-wrangling and FPGA-whispering capabilities, you should go to the CS2100DE website and attempt Lab 1 through Lab 4.

If you have already read through, and followed the instructions in Lab Prerequisites, as you should have done, then congratulations - you are ready for the tasks ahead! If not, now is the time to do so.

This task is not graded, but necessary to be able to complete the assignments meaningfully. Please do not take it lightly.

Task 1: Assembly simulation [5 points]

Task overview

The goal of this task is to get familiar with the RISC-V assembler/simulator or ARM assembler/simulator by simulating a sample program. We will simulate a system with memory-mapped input/output (MMIO).

We assume that the LEDs on this system are mapped to address 0x2400. This means that when we write to this memory address using sw, the least significant 16 bits of whatever data we write to this address is shown on the LEDs. For example, if we write 0xF0F0, the first four LEDs from the left will be lit, then the next four will be unlit, the next four lit, and the last four unlit.

Similarly, we assume that the switches are mapped to address 0x2404. This means that when we read data from this memory address using lw, the least significant 16 bits of data read will correspond to the state of the switches. For example, if the switches are alternating between on (up) and off (down), with the first switch from the left being on, the data read will be 0xAAAA.

Task instructions

In this task, we will simulate the user providing some input to the switches, and observe the provided assembly program display said input on the LEDs. The first step, of course, is to download the RISC-V assembly sample program or the ARM assembly sample program. Then, we can open our sample file in RARS or Keil MDK and start simulating.

RISC-V (RARS)ARM (Keil MDK)

Refer to Lab 4 from CS2100DE for some help on how to open a RISC-V assembly file in RARS. The guide is written for a different sample program, but the steps to open, assemble and run the code are identical.

Warning

Remember to set the memory configuration correctly - from "Settings" -> "Memory Configuration", choose "Compact, Text at Address 0". Setting this correctly is very important - our simulation for this assignment depends on this memory configuration being selected, and our CPU design later will also assume this memory configuration.

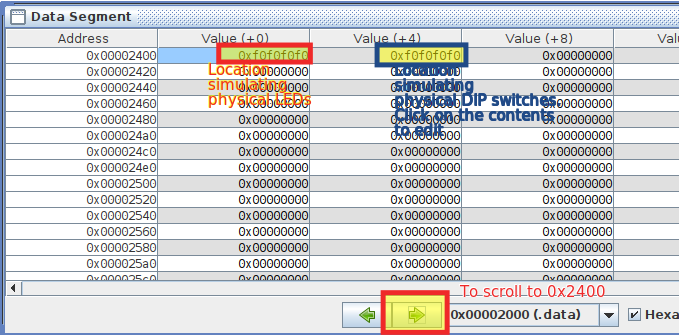

Once you have assembled and begun to run the RISC-V code line-by-line, before executing line 28, simulate changing the input on the switches by modifying the memory at the address mapped to the DIP switches (0x2404). Then, continue running the code, including lines 28 and 29, one line at a time, until the memory at the address for the LEDs (0x2400) changes to reflect the new data.

Refer to the ARM Programming Guide for instructions on how to set up and use Keil MDK.

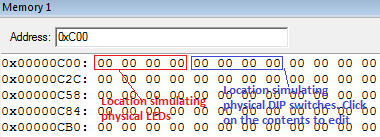

Once you have assembled and begun to run the ARM code line by line, before executing line 23, simulate changing the input on the switches by modifying the memory at the address mapped to the DIP switches (0xC04). Then continue running the code, including lines 23 and 24, one line at a time, until the memory at the address for the LEDs (0xC00) changes to reflect the new data.

For the assessment, you must be able to demonstrate everything you just did in front of your assessor. You must also understand every line of the sample assembly program, as you may be quizzed on what a particular line (or set of lines) does.

Finally, dump the instruction and data memories into .hex files. Click the "Dump Memory" button in RARS to do this. We need to dump the "text" (instruction) and "data" sections, using the "Hexadecimal Text" option, and finally choosing to "Dump to File...". Keep these files in a safe place to use in the next task.

Task 2: Basic HDL simulation and implementation [5 points]

In this task, we will implement a simple hardware demo, that reads data from two Read-Only Memories (ROMs) and displays them on the seven-segment display on the FPGA. Note that we are not (yet) building a CPU, or anything that actually executes the instructions, so what instructions we use is somewhat irrelevant.

Design specification

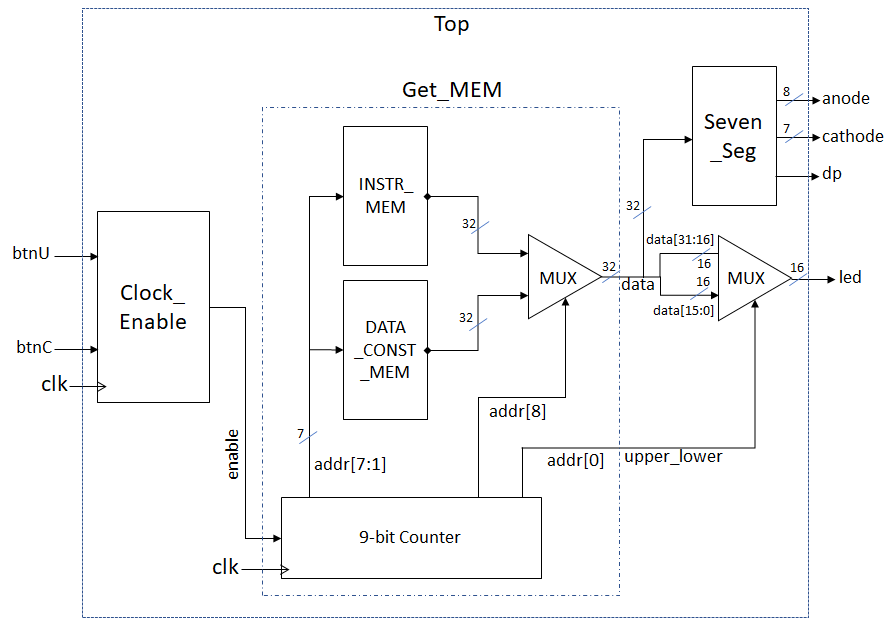

The system we will implement looks like this:

A block diagram of the system we want to implement

INSTR_MEM and DATA_CONST_MEM are ROMs with 128 words each. We will use RARS to dump our assembly program into these ROMs, so INSTR_MEM will hold the instructions of the assembly program (in machine code, of course), while DATA_CONST_MEM will hold the constants we declare in the program. The ROMs are both combinational logic and do not need clocking. Both ROMs are only word-addressable, not byte-addressable.

The Clock_Enable block generates an enable signal, to be used in tandem with the system clock clk. A module using this clock enable should, at every edge of clk, check if enable is high, and only be enabled if it is.

Clock_Enable takes in the upper and center push buttons as inputs, and uses them as follows:

If btnU is pressed, enable is pulled high at a frequency of 4 Hz. That is, once every 250 milliseconds, enable should go high for one edge of clk, and then go back low for the next 250 milliseconds.
If btnC is pressed, enable is never pulled high.
If neither btnU nor btnC are pressed, enable is pulled high at a frequency of 1 Hz. That is, once every second, enable should go high for one edge of clk, and then go back low for the next second.

The 9-bit counter is a sequential block. It uses the system clock clk and the clock enable signal enable to count up a 9-bit number addr. That is, for every positive edge of clk, if enable is high, the counter should increment by 1. addr is the only output of this module.

addr[7:1] should be used to address both INSTR_MEM and DATA_CONST_MEM. The ROMs will both output whatever value is present in the address addr[7:1]. Then, depending on addr[8], a multiplexer should choose whether to display the instruction memory or the data memory. The output of this multiplexer is data.

data is connected as an input to Seven_Seg directly, and the seven-segment displays will display the value from data as a hexadecimal value on the seven-segment display on the board. Seven_Seg_Nexys is already created and does not need to be modified or understood at an implementation level.

data is also then split into two 16-bit numbers, data[31:16] and data[15:0]. We use addr[0] as a select input to another multiplexer, to choose whether to display the upper or the lower 16 bits on the LEDs.

The sequence of events expected, if no buttons are pressed, is:

For one second, the seven-segment displays display the content of INSTR_MEM[0], while the LEDs show INSTR_MEM[0][31:16].
For one second, the seven segment displays display the content of INSTR_MEM[0], while the LEDs show INSTR_MEM[0][15:0].
For one second, the seven segment displays display the content of INSTR_MEM[1], while the LEDs show INSTR_MEM[1][31:16].
For one second, the seven segment displays display the content of INSTR_MEM[1], while the LEDs show INSTR_MEM[1][15:0].
Repeat until the last instruction in INSTR_MEM is displayed.
For one second, the seven-segment displays display the content of DATA_CONST_MEM[0], while the LEDs show DATA_CONST_MEM[0][31:16].
For one second, the seven segment displays display the content of DATA_CONST_MEM[0], while the LEDs show DATA_CONST_MEM[0][15:0].
For one second, the seven segment displays display the content of DATA_CONST_MEM[1], while the LEDs show DATA_CONST_MEM[1][31:16].
For one second, the seven segment displays display the content of DATA_CONST_MEM[1], while the LEDs show DATA_CONST_MEM[1][15:0].
Repeat until the last datum (singular form of "data"!) in DATA_CONST_MEM is displayed.
Start again from step 1.

If btnU is pressed, the sequence should be the same, but the interval should be shortened to 250 milliseconds instead of 1 second. The display should not be interrupted or reset, only sped up.

If btnC is pressed, the sequence should be paused as long as it is held down, and resume from the same place as soon as it is released.

Implementation guide

Download the template for Assignment 1 from the labs file repository. Choose the files appropriate for your setup - that is, in your language of preference (Verilog or VHDL), and the constraints file corresponding to the FPGA board model you have. Create a new project and import these files, setting the Top module correctly.

Tip

Vivado (like many other IDEs) does not take too kindly to project paths that are too long, contain special/non-English characters, or are in some cloud synchronised folder like OneDrive, Google Drive or Dropbox. All sorts of weird bugs may crop up, which are hard to debug.

Vivado projects should ideally be stored in a folder with a short and sweet name, that is not continuously synchronised to the cloud. For backups, collaboration and version control, git should be used - whether GitHub, Gitlab or any other implementation.

In total, we will need Top_Nexys, Seven_Seg_Nexys, Clock_Enable, Get_MEM, and one .xdc file corresponding to our board.

Warning

The Nexys 4 and Nexys 4 DDR/Nexys A7 use the same FPGA chip on board, but the pins are connected differently. Thus, the part number we choose when creating a new project is the same for both (XC7A100T-1CSG324C), however, the constraints file is different. Using the wrong constraints file will work for simulation, synthesis, implementation and even bitstream generation - but the bitstream will not work on the board!

We need to fill out Clock_Enable, Get_MEM and Top_Nexys to achieve the functionality described above.

To use the .hex files we must first rename them to use the .mem file extension. No conversion is needed. These files can be imported into our Vivado project as design sources, and used to initialise memories using the $readmemh() command.

Do NOT use a clock divider, like you may have used in EE2026. They can cause all sorts of issues, since it becomes difficult for the synthesis tool to route the clocks.

Simulation

Simulation is required for this assignment, but nothing too complicated - a simple simulation of the Top_Nexys module will suffice. The simulation should cover all possible input cases. Needless to say, the simulation should be show the correct result!

Feel free to make your simulation more rigorous by automatically checking test cases, and using $error() to halt the simulation if any don't pass. This is not required, but will make for an impressive demo.

Warning

Do not move on to the next step without writing a good simulation, and making sure the design can pass it! If the simulation doesn't work, there is no chance the hardware will. However, if the simulation does work, the hardware is almost guaranteed to work too. The most common reason for designs that work in simulation not to work on hardware is mistakes in the constraints file, or faulty hardware.

Implementation

Before starting the implementation process, remember to set up the constraints file correctly. Uncomment the lines corresponding to the pins used - no more, no less. Make sure the names in the constraints file match the inputs and outputs of the Top_Nexys module. Then, run Synthesis, Implementation and Generate Bitstream to generate the bitstream to upload to your board.

Tips

Chapter 2 from the lecture notes contains important design guidelines - these should be followed religiously. In particular, Chapter 2B explains how to write synthesisable HDL code, which is very useful for making designs that work optimally and as intended.
Clock enables should be used if the clock needs only be active in certain situations. Clock dividers should be avoided.
Instead of making the whole design in one go and praying that it synthesises correctly, we can always set individual modules as Top and synthesise one by one. This makes errors and bugs much easier to detect and solve.
"View Elaborated Design" -> "Schematic" is a very powerful tool to visualise the circuit generated. Liberal use of the schematic can help prevent bugs and unexpected design oddities.
Similarly, the synthesis report can contain some hints on where things are going wrong. We can check to see if the primitives being inferred make sense for our design.
Vivado's text editor is, perhaps, not the greatest ever made. We recommend using a more cromulent alternative, such as Notepad++ or Visual Studio Code.
Writing good HDL code is a skill that takes a lot of practice. It is a completely different paradigm to (and should never ever be confused with) software programming. The best teacher is experience, and practice really does help. Following the guidelines from Chapter 2, and being very conscious about the hardware we expect our code to generate, is key.
For this design, debouncing the switches is really quite extra and not necessary. (Why?) Feel free to look into a metastable filter, although it is also unnecessary for this design.

Submission and demonstration instructions

Submission

Once you have finished the assignment, you must submit your work to Canvas. You should submit a single zip file. The file should contain:

The assembly language program (ending with .s or .asm), if you have modified it. If not, skip this one.
The HDL sources for your project, i.e. all of the .v/.vhd/.sv files for modules, testbenches, etc.
The .xdc constraints file.
The .bit bitstream file.
A screenshot of the simulation waveform as a .jpg file. All of the signals in the design should be captured - there aren't that many, so they should fit on your screen. If you need to use multiple screenshots to make it clear, feel free to do so.

Your submission must be made to Canvas before the start of your lab session in Week 5. The exact deadline for your submission will be visible on Canvas.

Demonstration

Before your lab session in Week 5, you will be assigned a time slot of 7 minutes for your demonstration.

Arrive at the lab at least 30 minutes before your assigned time slot. If you are one of the earlier time slots, you need not arrive more than 15 minutes before the start of the lab timing (i.e. before 17:45 or 08:45).

The time will be split as follows:

2 minutes to demonstrate Task 1, using RARS. You should show that you are able to follow the instructions in Task 1.
2 minutes to demonstrate Task 2, on the FPGA board. You should show that the design specified for Task 2 is implemented correctly with all features functional.
3 minutes for two questions from the GA assessing you.

The time is extremely tight - with so many of you, we do have to be quick :3. If you are not there when we are ready to assess you, we will skip past you and start assessing others. You will be bumped to the bottom of the queue, and we will not assess you until everyone else is done. (On the flip side, if you are nice and early, and someone misses their turn - good news, you might get to go home early :D)

Note that you will not have extra time to open programs, load projects, etc.. Make sure you have opened RARS and Vivado, and have the bitstream ready to upload to your board. Any extra time you take to do these tasks will eat into the time for the demonstration. We will not exceed your allotted time for demonstration.

Penalties for late submission

Late submissions and demonstrations up to one week will be allowed, with a penalty of 50%. Beyond one week, submissions will not be accepted.

This policy is non-negotiable, aside from the usual NUS clauses such as being unwell (Medical Certificate strictly required), authorised competitions, family emergencies etc.

Conclusion

Congratulations! With the first assignment finished, we are now comfortable with FPGA design and assembly programming. We are ready to dive into the proper content of the course. In the next assignment, we will have our CPU up and running - it's going to be exciting.

What we should know

How to write and simulate RISC-V assembly programs.
How to use MMIO in our RISC-V assembly programs to control peripherals.
How to use Vivado to create a design for the FPGA board.
How to translate a block diagram into an implemented design for FPGA.
