OLED

OLED

OLED uses PMOD B.

The OLED controller has a built-in buffer, which means that your program does not have to keep feeding pixels continuously. Only changes need to be written.

Caution: Do not leave OLED on for too long unnecessarily, especially with the same frame. It can cause burn-in.

OLED_CTRL register functionality is described below.

OLED_CTRL[3:0] : Change that triggers write. We can vary one of them (e.g., column) while keeping the other two the same. This can be efficient in applications like vector graphics, where replicating a pixel along a row or column is common. In the example program where a line with a specified colour is drawn, we vary only x (columns).

  • 0x0: vary_pixel_data_mode
  • 0x1: vary_COL_mode (x)
  • 0x2: vary_ROW_mode (y)

OLED_CTRL[7:4] : Colour format.

  • 0x0: 8-bit colour mode: 1 byte per pixel, memory efficient especially if loading bitmapped images. Format: 3R-3G-2B.
  • 0x1: 16-bit colour mode: Highest colour depth supported by the OLED in a compact representation. It is the OLED native input format: 5R-6G-5B.
  • 0x2: 24-bit colour mode: Similar to standard displays, but some LSBs are not used. Easier to visualise in simulation as each colour is a 2-hex digits. Wrapper output format: 5R-3(0)-6G-2(0)-5B-3(0).

Loading Images

The easiest way to load a raster image is to hard-code the array in C or assembly. This can be done easily using an online tool such as https://notisrac.github.io/FileToCArray/.

It is also possible to receive the image at runtime via UART or initialise it in your HDL via a .mem file. However, these will limit your ability to simulate in RARS.

Before you think of loading a raster image - Make sure your data memory is big enough to hold the image. Adjust the depth/size in both HDL and C! A not-too-complex vector image may not need a memory size increase or memory configuration change.

For a full-resolution raster image (96x64), the data memory size needed will exceed the 0x2000 size provided by the 'compact, text at 0' configuration that we have been using. You will have to resort to the RARS default configuration in this case.
This requires changing

  • initialization and reset value of the program counter in ProgramCounterv2 file (2 places in total) to 0x00400000.
  • IROM_BASE and DMEM_BASE to 0x00400000 and 0x10010000 respectively in Wrapperv3 as well as the C code
  • DMEM_DEPTH_BITS in Wrapperv3. A full-resolution image with even 8-bit colour mode requires 6144 bytes, which means a DMEM_DEPTH_BITS of at least 13! The C code DMEM_SIZE should be 2^DMEM_DEPTH_BITS which is 0x2000 for DMEM_DEPTH_BITS of 13.

When you export byte arrays in the data segment from Godbolt to RARS, there could be an issue - RARS doesn't recognize the octal escape sequence emitted by compilers. A workaround is to copy-paste the actual C array into the data segment of RARS with a .byte declaration, instead of using the .ascii array emitted by the compiler. The rest of the generated assembly is fine. This is illustrated in the figures below.

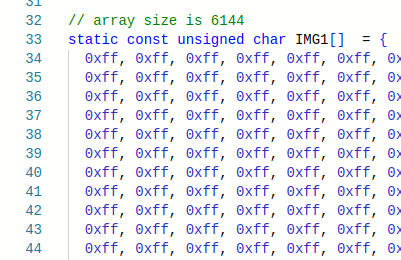

C Code
C Code

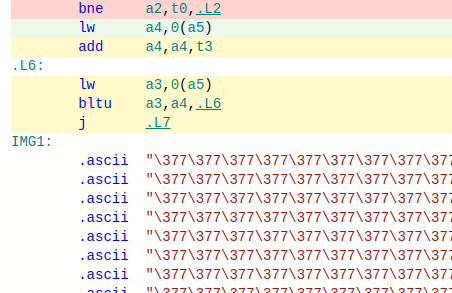

Octal array emitted by the compiler
Octal array emitted by the compiler

Copy-pasted array fix
Copy-pasted array fix in RARS with .byte declaration

Food for thought

  • It may be better to use synchronous read and use block RAMs if you have many images. Else, you will quickly run out of LUTs.
  • Image pixels being sent column-wise is advantageous if the conversion tool can give a column-major format for the array. This is because multiplication by 64 is easier than by 96.
  • Clang emits mul instructions when you multiply by 96, GCC does y*64+y*32 instead in some optimization modes.
  • It is not uncommon to allocate memory that is larger than the required size to make the buffer dimensions powers of two - trading off memory for performance!
  • Possible enhancement: Implementing a mode where the row/column indices autoincrement in a row-major/column-major manner can accelerate the loading of raster images. Only one write per pixel will suffice, with the ability to feed data from a C array without maintaining separate row/column indices. You will need to implement some control bits in the control register to enable this (and an additional bit if you wish to allow the user to choose between row-major / column-major formats), along with other changes in the Wrapper.
  • It is not possible to read back what you wrote to the OLED. Something = *OLED_DATA_ADDR does not work. These are memory-mapped peripherals; do not treat like memory. However, it is possible to modify the Wrapper and TOP to accomplish this, but has some issues such as needing 2 clock cycles for a read.
